Your current location: ProductsHydraulic Control ValveRemote Control Float Valve

100X Remote Control Float Valve

Product overview

Product model: 100X
Nominal diameter: DN20~450mm
Nominal pressure: PN1.0~2.5MPa
Applicable medium: water
Applicable temperature: 0~80℃
Structure length standard: GB/T12221-2005
Standard of connection flange: GB/T9113
Pressure and temperature grade: GB/T12224-2005
Test inspection standard: GB/T13927-2008

100X Remote Control Float Valve product details

100X Remote Control Float Valve produced and sold by Baigang Valve Group is a hydraulic operated valve with multiple functions.It is mainly installed at the water inlet of the pool or the elevated water tower. When the water level reaches the set height, the main valve is controlled by the floating ball guide valve to close the water inlet and stop supplying water. When the water level drops, the main valve is controlled by the floating ball switch to open the water inlet to the pool and realize automatic water replenishing.Accurate control of liquid level, free from interference of water pressure 100X diaphragm remote control ball float valve can be installed with the height of the pool and any position in the use of space, easy maintenance, debugging, inspection, reliable sealing, long service life.Diaphragm valve reliable performance, high strength, flexible action suitable for 450mm diameter below the pipeline.Piston type is recommended for diameter above DN500mm.


100X Remote Control Float Valve scope of application

Current hydraulic control valves are widely used in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry and general industry.


100X remote control float valve main technical parameters

Nominal pressure (Mpa) Shell test pressure (MPa) Seal test pressure (MPa) Suitable media Medium temperature (℃)
1.0 1.5 1.1 water 0-80
1.6 2.4 1.76
2.5 3.75 2.75


100X Remote Control Float Valve main parts and materials

Part Name Parts and materials
Body valve cover WCB
Valve seat disc Copper alloy
O-ring seals
Valve stem 2Cr13
spring 50CrVA
Copper alloy
Ball valve Copper alloy
Float valve Copper alloy
Micro filter stainless steel

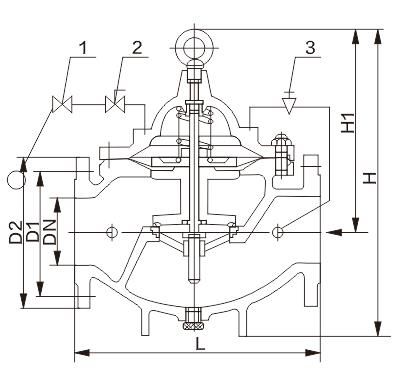

100X Remote Control Float Valve main form of connection size


DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450
L 150 160 180 200 203 216 241 292 330 356 495 622 698 787 914 978
H1 212 212 212 212 265 310 350 460 520 570 695 780 905 1025 1080 1030
H 179 179 179 210 210 215 245 305 365 415 510 560 658 696 735 735


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the 100X Remote Control Float Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
