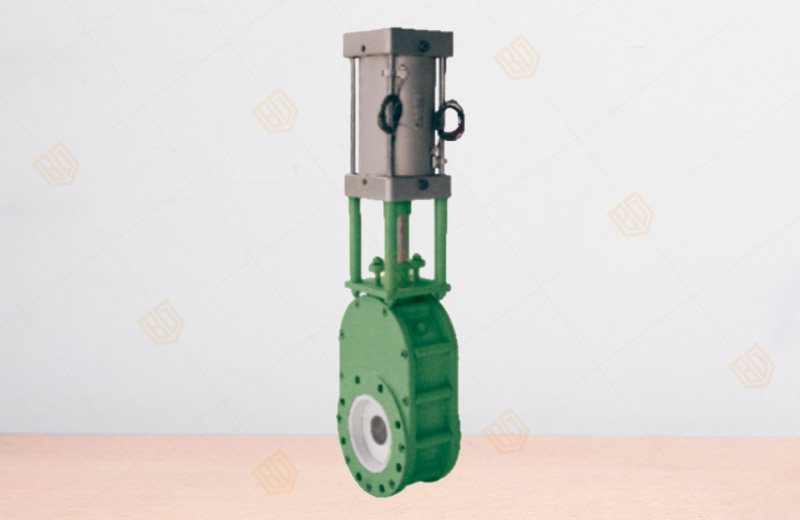

Z674TC Pneumatic Ceramic Rotary Valve main purposes

Z674TC Pneumatic Ceramic Rotary Valve produced and sold by Baigang valve group for power, petroleum,   chemical, metallurgy, gold ore, coal, ore, chemicals, sewage treatment,   sedimentation tanks, slaughterhouse wastewater, pneumatic conveying   lines, beer brewing and other industrial mixtures and other industrial   materials System piping as feed, discharge, exhaust hoist device.

Z674TC Pneumatic Ceramic Rotary Valve structural features
 1,  the use of new high-tech ceramic structural materials or super-hard   alloy surface valve seal material, with excellent wear resistance,   corrosion resistance, erosion resistance, high temperature, antimagnetic   and tightness, greatly Extend the service life of the valve.
 2 , advanced   and reasonable structure, the use of floating connections between the   double gate, under the media pressure to form a reliable one-way seal,   due to the unique structural design of the stem, the valve opening and   closing process, the gate automatically rotate to achieve the gate and   Uniform wear between the sealing surface of the seat, resulting from   self-consistent abrasive effect, combined with sealed plus close,   therefore, greatly enhance the service life and superior sealing   performance.
 3 , according   to different conditions designed purge port, automatically eliminate   the accumulation of valve cavity fouling and stuck phenomenon.
 4 , the   valve structure is compact, small size, small opening and closing   torque, reliable sealing, easy installation and maintenance.
 5, can be manual, pneumatic, electric, hydraulic, bevel gear, sprocket and other transmission methods.

Z674TC Pneumatic Ceramic Rotary Valve main shape and structure size (mm) 1.0

 Z674TC Pneumatic Ceramic Rotary Valve The main shape and structure size (mm) 1.6
