P15W-16 Brass Exhaust Valve
Product overview
Product model: P15W-16
Nominal diameter: DN15~25mm
Nominal pressure: 1.6MPa
Working medium: water and gas
Operating temperature: -10℃≤ T ≤100℃
Pipe thread standard: in line with ISO228 standard

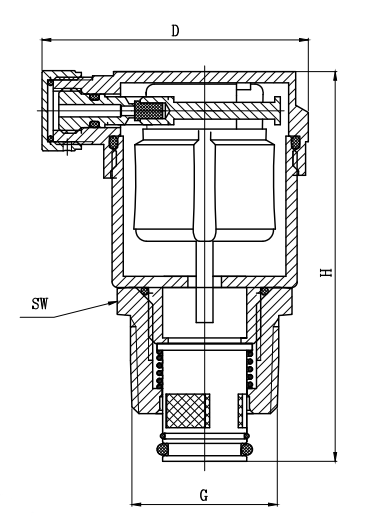

| DN(mm) | NPS(in) | L | D | S |
| 15 | ZG1/2 | 76 | 31.5 | 22 |
| 20 | ZG3/4 | 78 | 44 | 27 |
| 25 | ZG1 | 79 | 44 | 33.5 |
| 20(A2) | ZG3/4 | 67.5 | 38 | 27 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the P15W-16 Brass Exhaust Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
