D371X LT Butterfly Valve product description

D371X LT Butterfly Valve produced and sold by Baigang valve group drive mode optional manual, worm gear, pneumatic, electric, connection options flange, the folder, the structure can be used single eccentric, the center line, double eccentric, three eccentric, the sealing structure can be used soft seal, hard seal , The pressure range PN0.1-10MPa , the nominal diameter of DN40 ~ 2000mm , the material can be cast steel, stainless steel. Due to the wide range of valves used, the same valve in different situations and working conditions have different collocation.

D371X LT Butterfly Valve uses and features
 LT-type butterfly valve for food, medicine, chemicals, petroleum, electricity, metallurgy, urban construction, textile, paper and other water supply and drainage, gas pipeline for regulating flow and interception of the role of the media, its main features are:
 1, novel design, reasonable, unique structure, light weight, quick opening and closing.
 2, the operating torque is small, easy to operate, labor-saving Qiao clever.
 3, can be installed in any location, convenient.
 4, the seal can be replaced, reliable sealing performance, to achieve two-way seal zero leakage.
 5, sealing material aging resistance, corrosion resistance, long life and other characteristics.
 6, simple structure, universal interchangeability, low prices.
 7, stem seal is not easy to deform to avoid the usual stem leakage. Overall supportive, stable, strong.
 8, seat rubber less consumption, the potential impact of expansion is small, easy to control the torque value within the appropriate range of two-piece stemless pin connection, simple and compact structure, demolition is extremely convenient.
 9, the butterfly plate with automatic energy to achieve a combination of butterfly plate and valve seat over the interference. Phenolic back seat with non-shedding, tensile, leak-proof, easy to replace and so on. As the seat sealing surface and the back as a whole, thereby reducing the deformation of the valve seat.

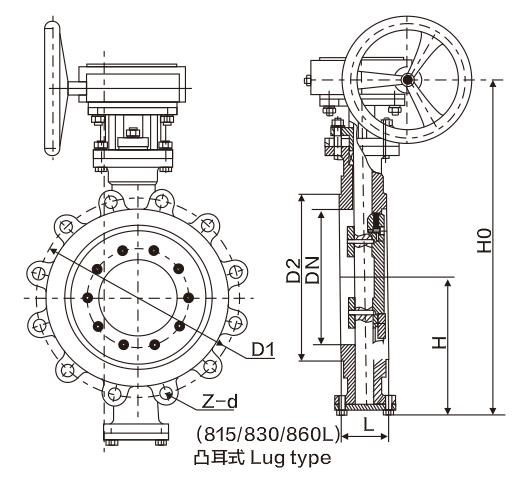

D371X LT Butterfly Valve main dimensions and weight (PN1.0 / 1.6MPa)
